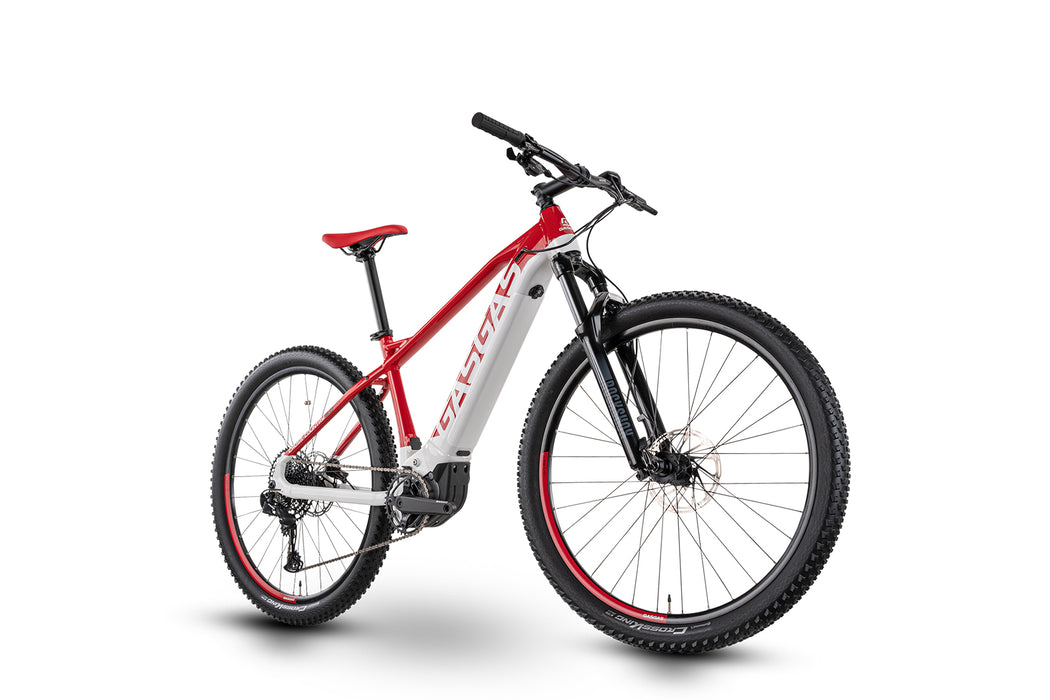

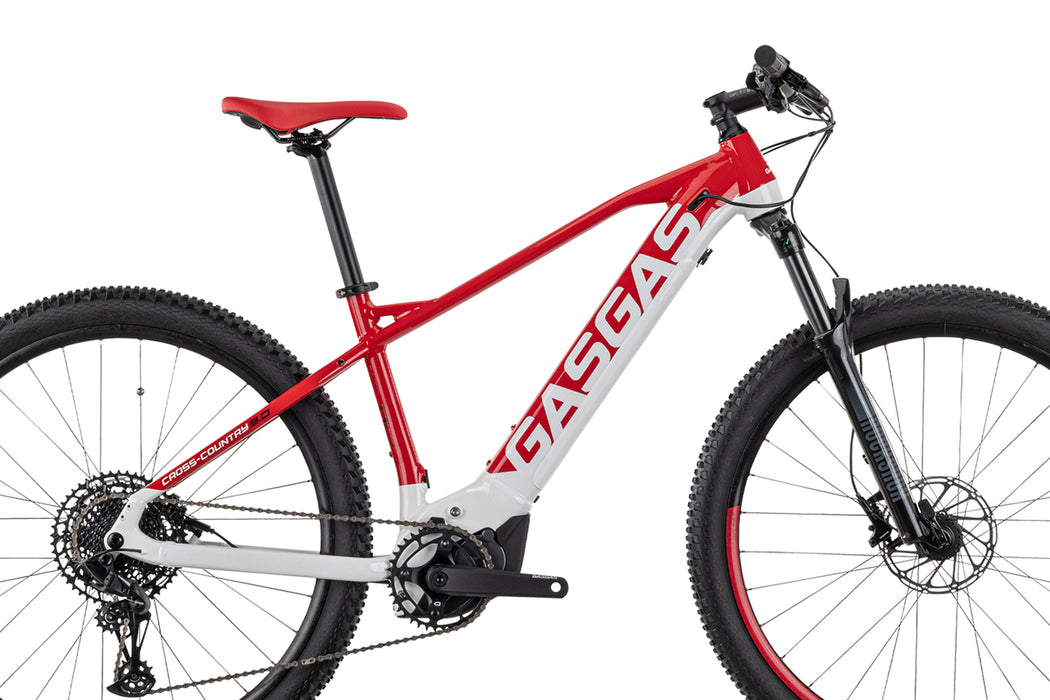

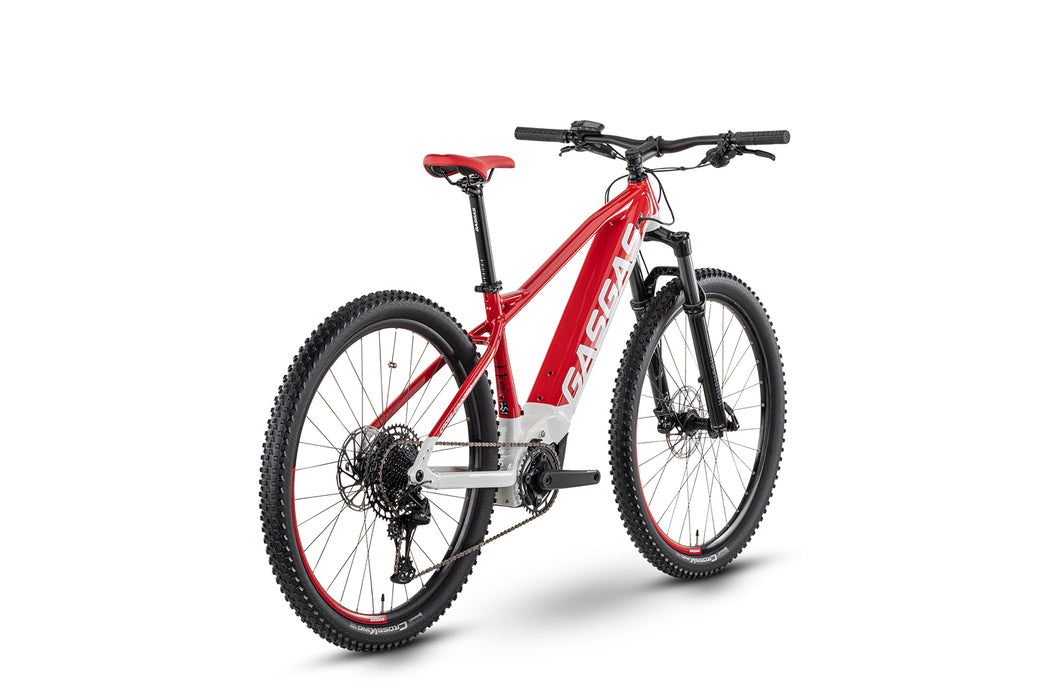

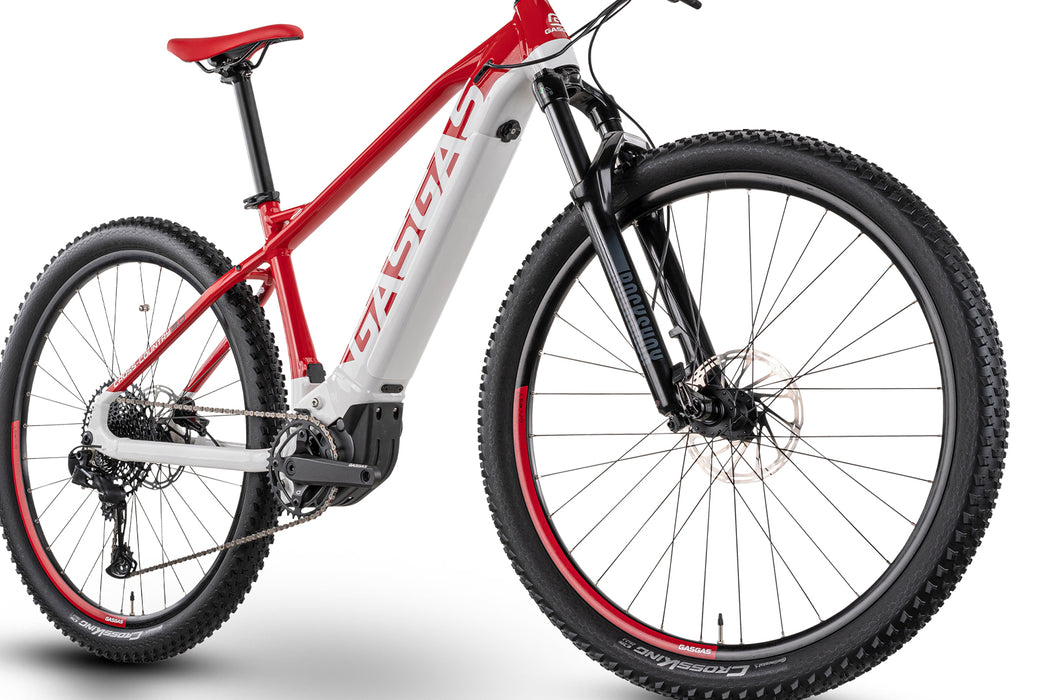

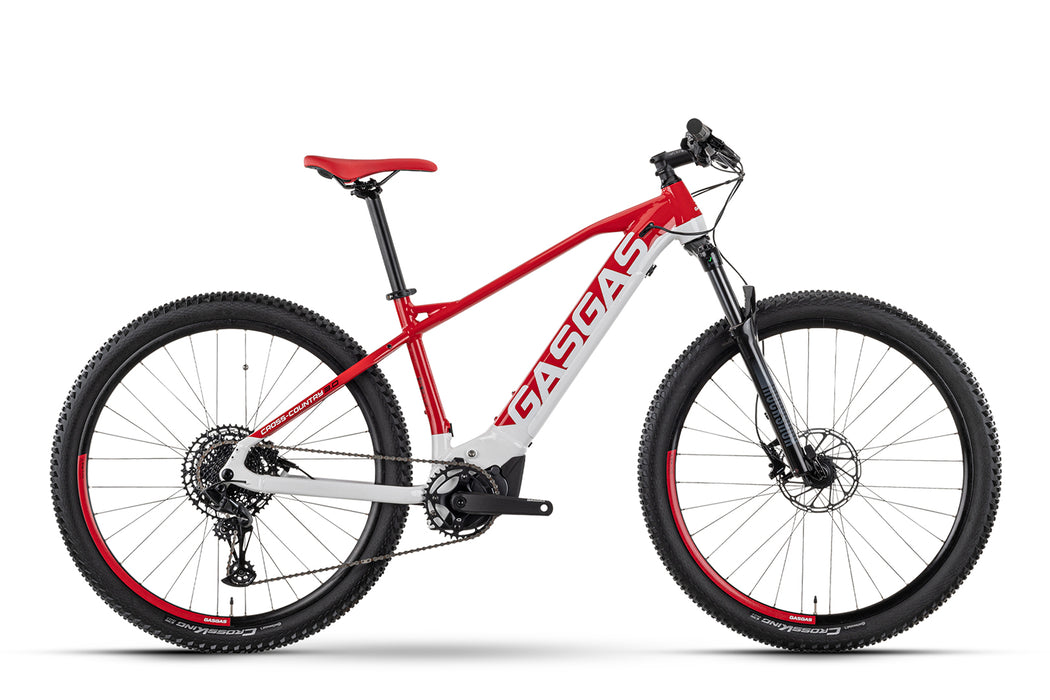

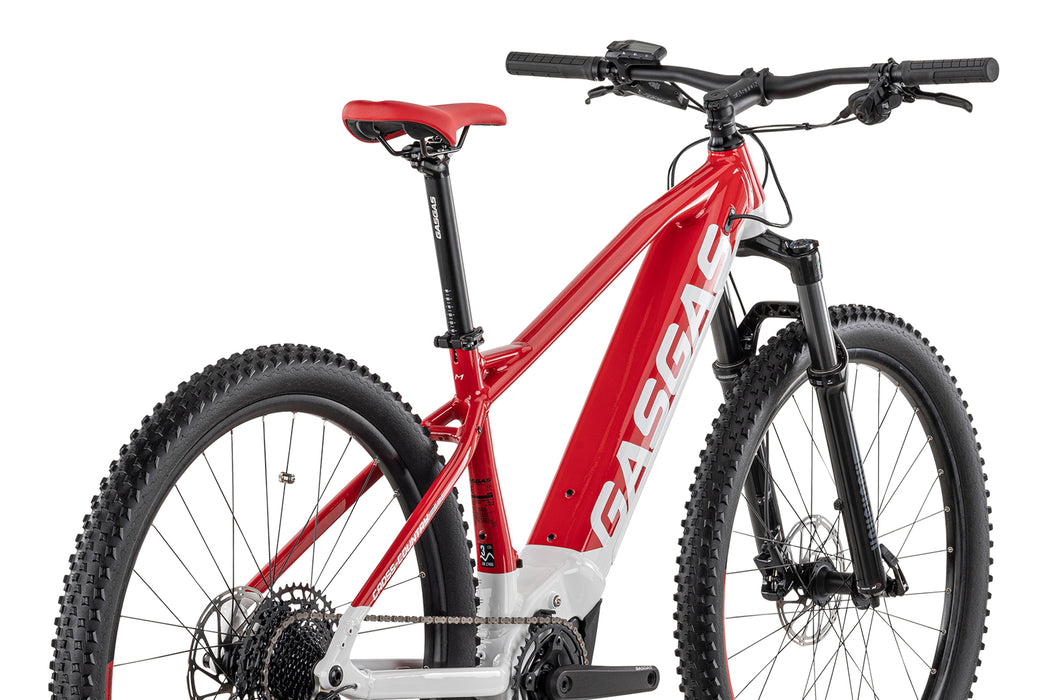

GasGas G Cross Country 3.0 E-Bike
DESCRIPTION
GasGas G Cross Country 3.0 E-Bike
This product will be sent by freight due to its size and nature and will be held for pick up at your nearest depot.
Certain restrictions, considerations and charges may apply depending on your shipping location.
It's recommended and encouraged to have this bike assembled at a qualified dealer. Adjustments to handlebars, controls, brakes (may need to be bled), battery clamps and seating, tire pressure, headset freeplay, and derailleur may be required prior to use.
It is also recommended to tighten bolts before every ride, and to check the chain tension and make adjustments as needed after the bike has been broken in as is standard in the Mountain Bike industry. Any issues caused as a result of not doing such is not covered by warranty as per GasGas.
The G Cross Country 3.0 is dialed for high-speed riding and simple Sunday spins alike. A hardtail frame opens up a new world of eMTB possibilities, utilizing a 29" wheel set for sharp and responsive ride while maintaining some forgiving handling to help build confidence and develop those all-important MTB skills. A RockShox 35 Silver TK 120mm fork keeps trouble at bay, while a 12-speed SRAM SX Eagle drivetrain provides buttery smooth shift.
Sized right, 29" wheels are the standard for smooth rolling and terrain management. With wide tires, you'll have plenty of traction and comfort.
The 120mm of travel on the front suspension fork will take the sting out of rough terrain, keeping you fresher and in better control.
Specifications
Frameset
| Frame | 29", Alloy 6061, Integrated battery |
| Fork | RockShox 35 Silver TK, Solo Air, Air, 120 mm, tapered |
Brakes & Drivetrain
| Motor | Yamaha PW-X3, 250 W, 85 Nm |
| Battery | Simplo, 630 Wh, 36 V |
| Charger | Simplo rapid charger, 4 A |
| Shock | Simplo rapid charger, 4 A |
| Mode Switch | Integrated into display |

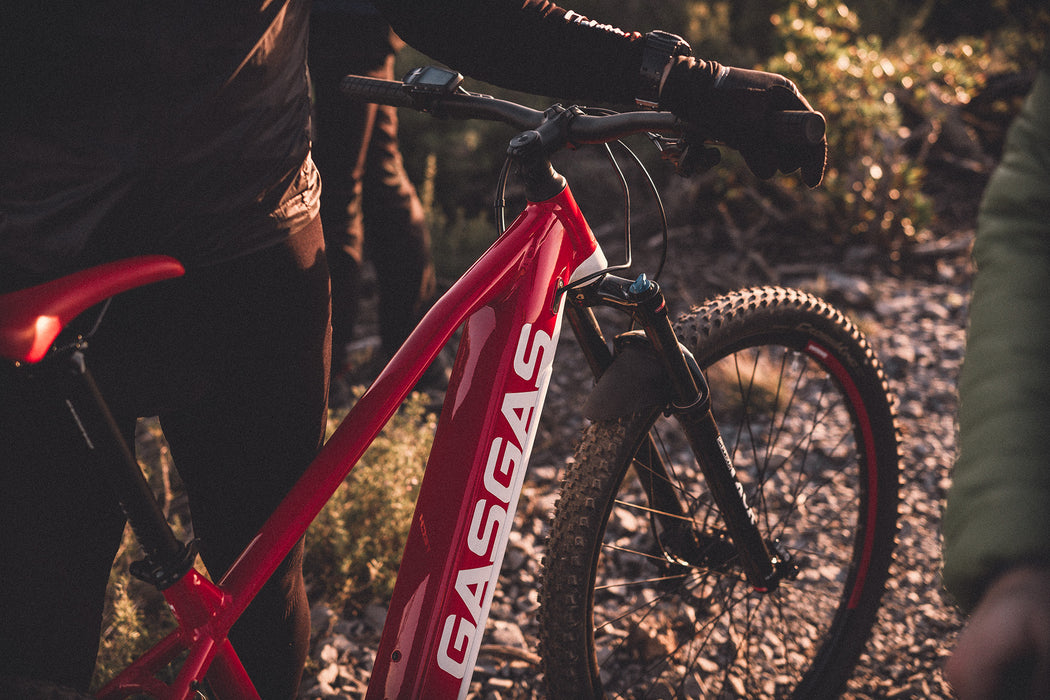

| Display | Yamaha Display A, LCD-Display, Micro-USB |
| Front Brake | SRAM Level T, 2-piston, Hydraulic disc brake |
| Front Brake Rotor | SRAM Centerline, 180 mm, 6-hole |
| Rear Brake | SRAM Level T, 2-piston, Hydraulic disc brake |
| Rear Brake Rotor | SRAM Centerline, 180 mm, 6-hole |

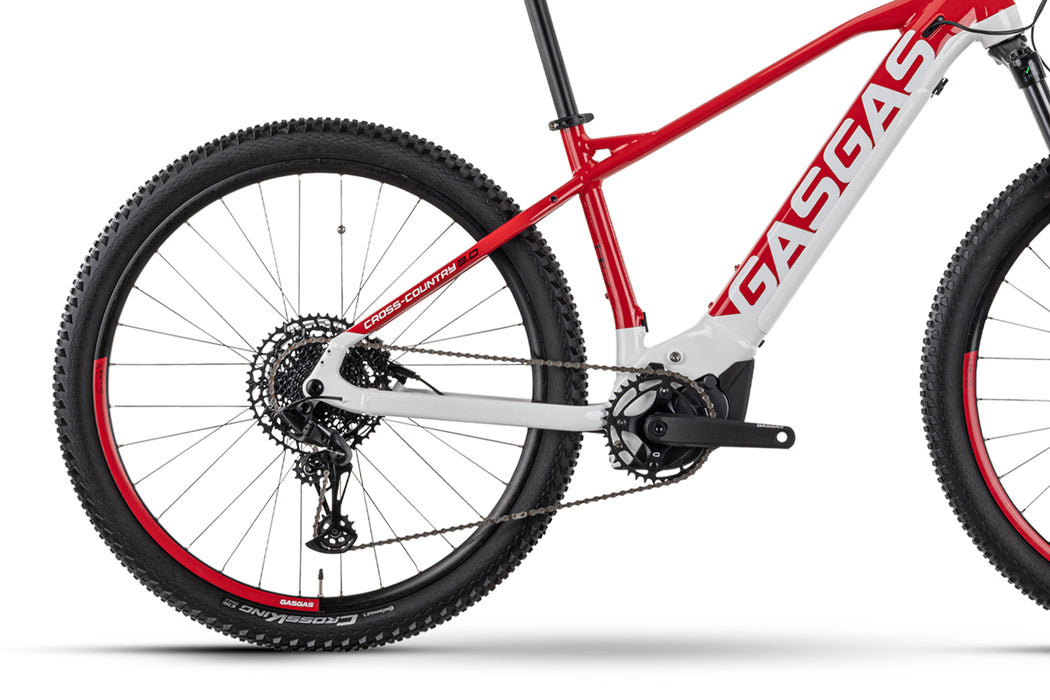

| Rear Derailleur | SRAM SX Eagle, 12-S |
| Cassette | SRAM PG-1210, 11-50 T |
| Chain | SRAM SX Eagle |
| Chainring | SRAM X-Sync Eagle, 38 T |
| Crank Arm | GASGAS EC40, Aluminum forged, ISIS |
| Shift Lever | SRAM SX Eagle, Single Click |
Wheels
| Front Wheel | Rim: Mach 1 TRAXX, With eyelets / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle |
| Rear Wheel | Rim: Mach 1 TRAXX, With eyelets / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle |
| Tire | Continental Cross King, 58-622, 29 x 2.3 |
Cockpit
| Stem | GASGAS 31,8, 7 °, Ahead |
| Headset | GASGAS ZS44/ZS56 |
| Handlebar | GASGAS Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm |
| Grips | GASGAS MTB, Lock-on grips |
| Saddle | GASGAS MTB |
| Seat Post | GASGAS, 31.6 mm, 350 mm, Patent |
Accessories
| Pedals | GASGAS, aluminum |
| Chain Guide | Direct Mount |
Additional Information
| Weight | 23.2 kg |
| Permissible Total Weight | 130 kg |
| Trailer approval | Approved |
Due to problems in supply chain, the bike can be delivered with alternate but similar components, for example SRAM vs Shimano controls.
Geometries
| Size | MD | LG |
|---|---|---|
| A Top Tube Length | 626mm | 638mm |
| B Seat Tube Length | 450mm | 500mm |
| C Seat Tube Angle | 74° | 74° |
| D Head Tube Length | 120mm | 130mm |
| E Steering Angle | 67° | 67° |
| F Chain Stay Length | 475mm | 475mm |
| G Wheel Base | 1206mm | 1220mm |
| I BB-Drop | 60mm | 60mm |
| K Fork Offset | 42mm | 42mm |
| L Stack | 646mm | 656mm |
| M Reach | 440mm | 450mm |
| N Stem Length | 60mm | 70mm |
| O Crank Length | 170mm | 170mm |
