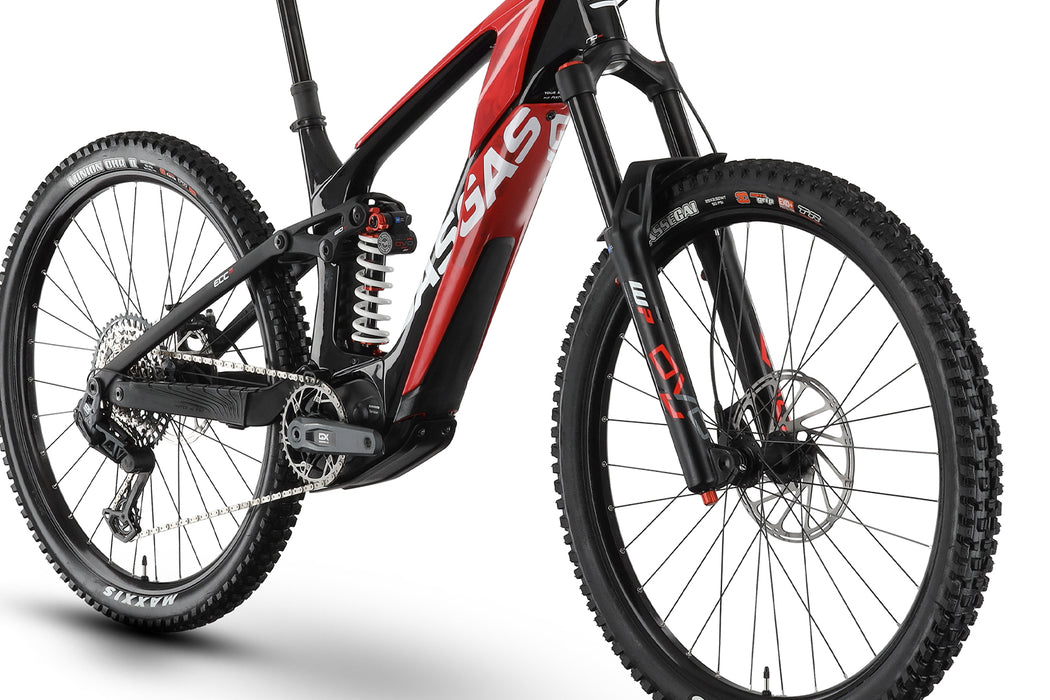

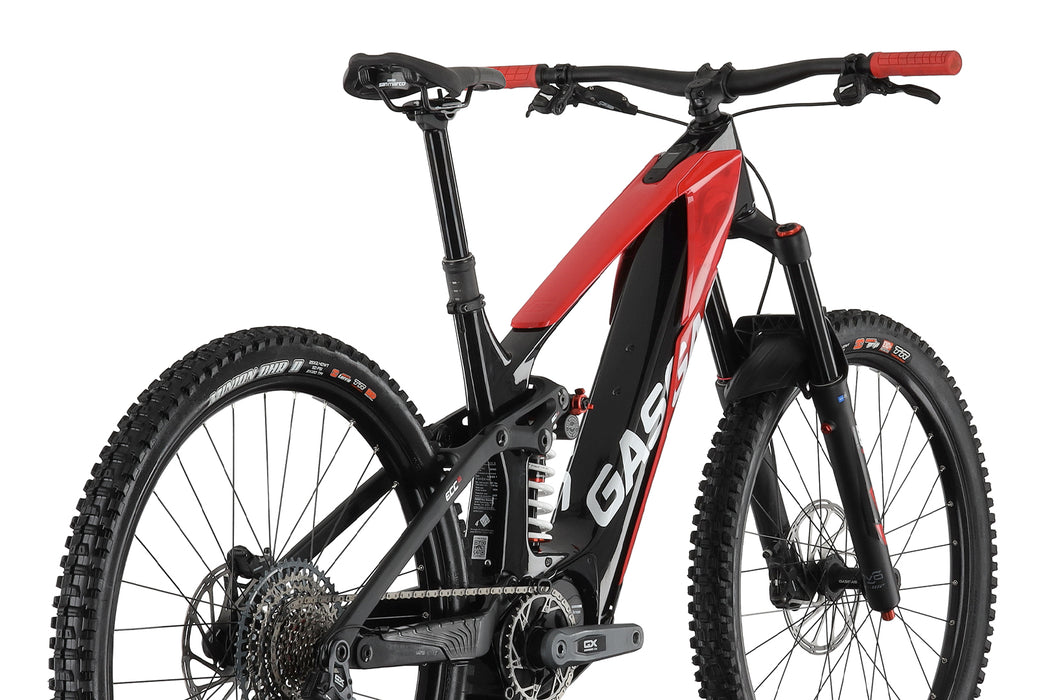

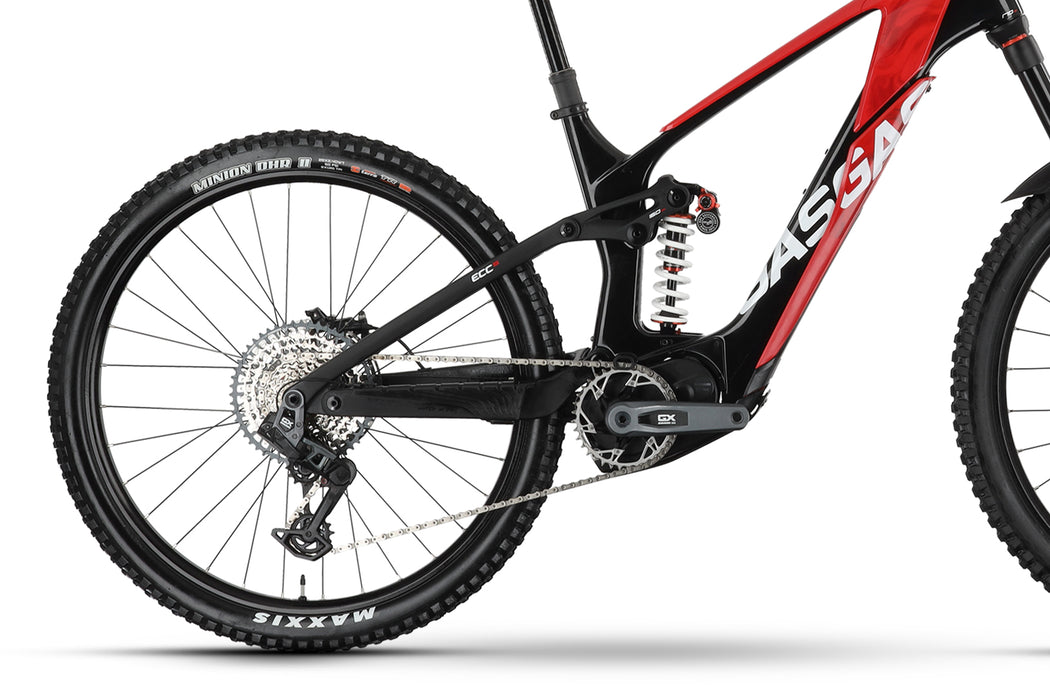

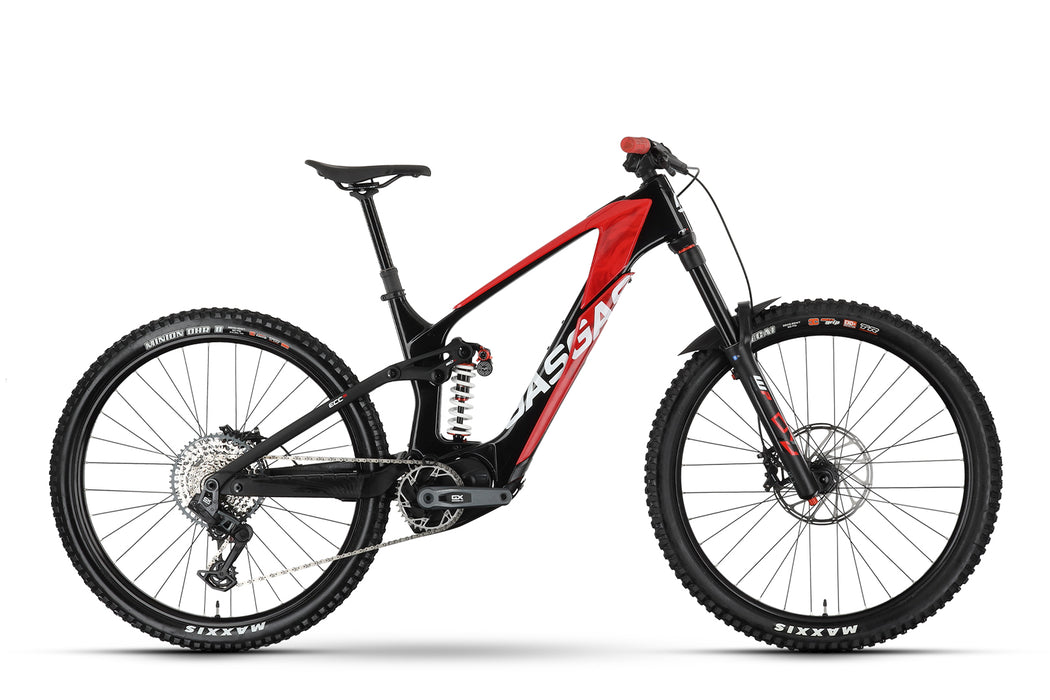

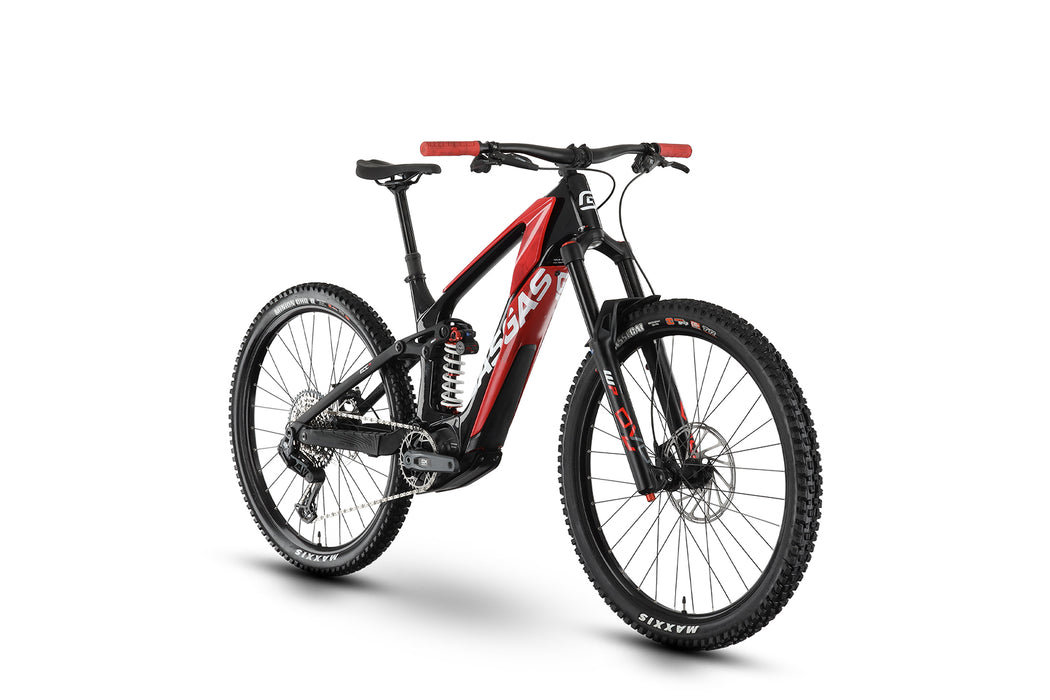

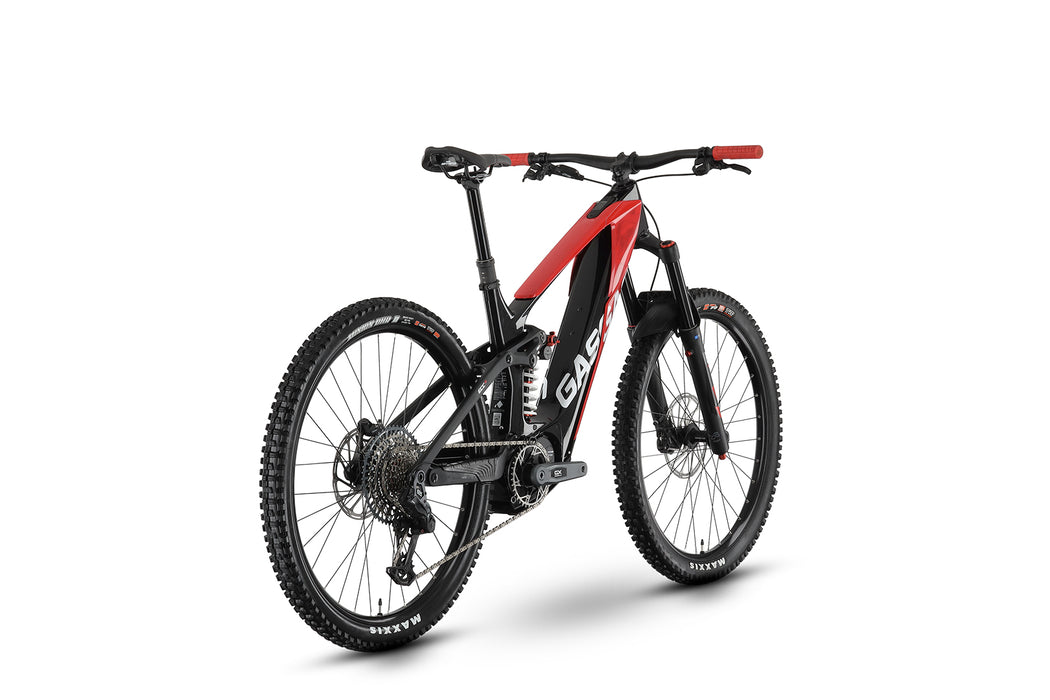

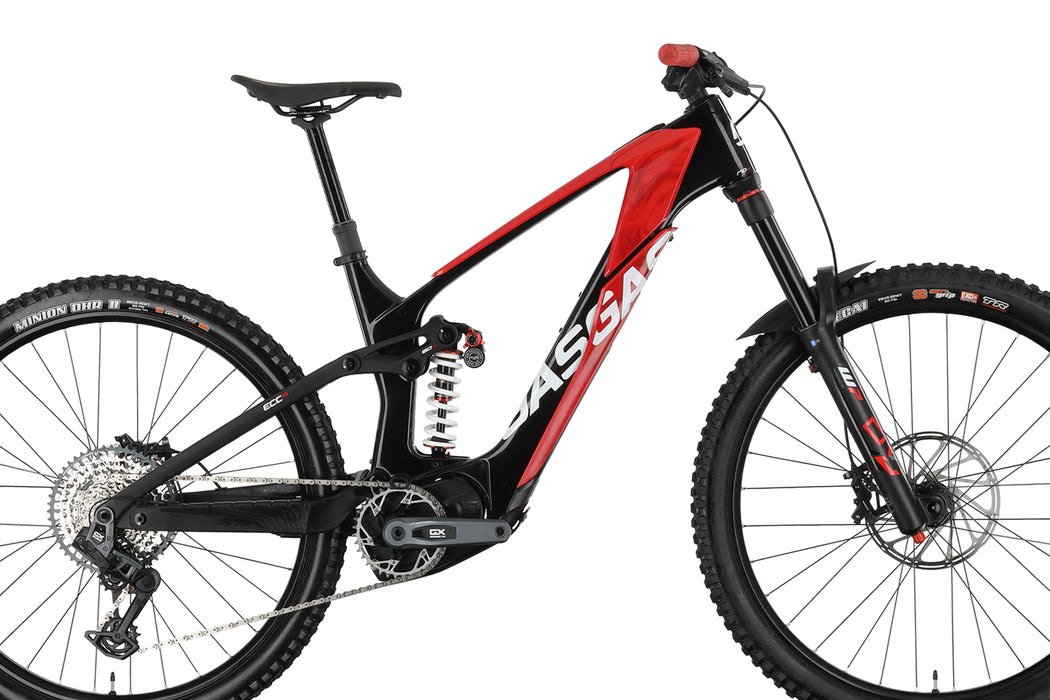

GasGas ECC 5 E-Bike
DESCRIPTION
This product will be sent by freight due to its size and nature and will be held for pick up at your nearest depot.
Certain restrictions, considerations and charges may apply depending on your shipping location.
It's recommended and encouraged to have this bike assembled at a qualified dealer. Adjustments to handlebars, controls, brakes (may need to be bled), battery clamps and seating, tire pressure, headset freeplay, and derailleur may be required prior to use.
It is also recommended to tighten bolts before every ride, and to check the chain tension and make adjustments as needed after the bike has been broken in as is standard in the Mountain Bike industry. Any issues caused as a result of not doing such is not covered by warranty as per GasGas.
Don't Hold Back!
The ECC 5 is the second-tier model in our totally new ECC E-Enduro eMTB range. Featuring the same frame platform as the flagship ECC 6 model for maximum shredability, the rig remains an amazing set-up when paired with a 12-speed SRAM GX Eagle Transmission drivetrain, SRAM AXS Pod Ultimate Controller, 4-piston SRAM G2 RS brakes with 220/200mm rotors, and Maxxis rubber.
SRAM Eagle Powertrain
SRAM's Eagle Powertrain delivers ultimate pedal-assist tech. Super-quiet, its 90Nm of torque and 680W peak power has a natural pedaling experience enhanced by auto-shift and coast-shift technology.
WP Suspension Partnership with DVO
In partnership with DVO, suspension is a 170mm WP 38CV SL air fork and WP CV Coil HLC rear shock and features WP's proprietary cone valve technology for maximum traction and control.
Specifications
Frameset
| Frame | 29", Carbon, Integrated battery, Boost, 160 mm |
| Fork | DVO Onyx D1CV SL, Air, 170 mm, tapered |
| Shock | DVO JadeX CV Coil, Coil, 205x65 mm |
Brakes & Drivetrain
| Motor | SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm |
| Battery | SRAM Eagle Powertrain, 630 Wh |
| Charger | SRAM Eagle Powertrain Charger, 4 A |
| Display | SRAM Eagle Powertrain AXS Bridge Display |
| Front Brake | SRAM G2 RS, 4-piston, Hydraulic disc brake |
| Front Brake Rotor | SRAM Centerline, 220 mm, 6-hole |
| Rear Brake | SRAM G2 RS, 4-piston, Hydraulic disc brake |
| Rear Brake Rotor | SRAM Centerline, 200 mm, 6-hole |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-S |
| Cassette | SRAM XS-1275, 10-52 T |
| Chain | SRAM GX Eagle Transmission Flattop |
| Chainring | SRAM XX Eagle Transmission |
| Crank Arm | SRAM GX Eagle E-MTB |
| Shift Lever | SRAM AXS Pod Ultimate Controller |
Wheels
| Front Wheel | Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle |
| Rear Wheel | Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle |
| Tire | Maxxis Assegai, 63-622, 29 x 2.5 |
| Rear Tire | Maxxis Minion DHR II, 62-622, 29 x 2.4 |
Cockpit
| Stem | GASGAS 35, 0 °, Ahead |
| Headset | Acros AZX-579 ZS56/ZS56 |
| Handlebar | GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm |
| Grips | GASGAS MTB, Lock-on grips |
| Saddle | Selle San Marco GND |
| Seat Post | GASGAS Pro, 34.9 mm, Dropper post |
Accessories
| Pedals | GASGAS, aluminum |
| Chain Guide | Direct Mount |
Additional Information
| Weight | 24.4 kg |
| Permissible Total Weight | 130 kg |
| Trailer approval | No trailer approval |
Due to problems in supply chain, the bike can be delivered with alternate but similar components, for example SRAM vs Shimano controls.
Geometries
| Size | SM/MD | MD/LG | LG/XL |
|---|---|---|---|
| A Top Tube Length | 588mm | 613mm | 638mm |
| B Seat Tube Length | 400mm | 440mm | 470mm |
| C Seat Tube Angle | 76° | 75° | 75° |
| D Head Tube Length | 115mm | 130mm | 145mm |
| E Steering Angle | 64° | 64° | 64° |
| F Chain Stay Length | 461mm | 465mm | 469mm |
| G Wheel Base | 1258.6mm | 1294mm | 1330mm |
| I BB-Drop | 31.5mm | 31.5mm | 31.5mm |
| L Stack | 649mm | 663mm | 676mm |
| M Reach | 450mm | 475mm | 500mm |
| N Stem Length | 40mm | 40mm | 40mm |
| O Crank Length | 160mm | 160mm | 160mm |
