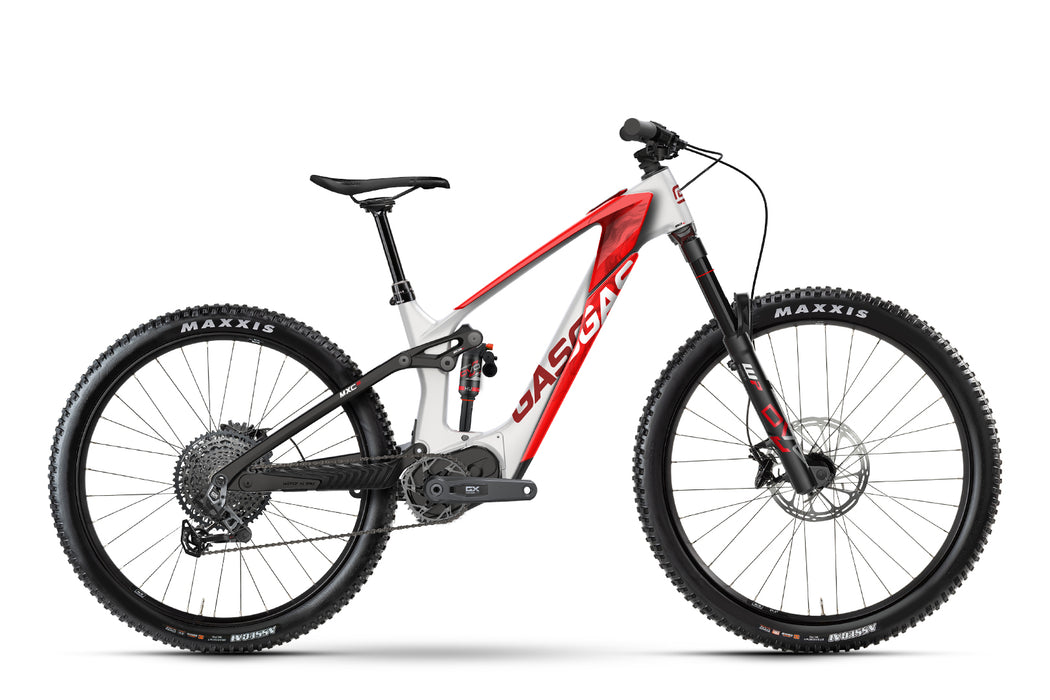

GasGas MXC 5 E-Bike
DESCRIPTION
This product will be sent by freight due to its size and nature and will be held for pick up at your nearest depot.
Certain restrictions, considerations and charges may apply depending on your shipping location.
It's recommended and encouraged to have this bike assembled at a qualified dealer. Adjustments to handlebars, controls, brakes (may need to be bled), battery clamps and seating, tire pressure, headset freeplay, and derailleur may be required prior to use.
It is also recommended to tighten bolts before every ride, and to check the chain tension and make adjustments as needed after the bike has been broken in as is standard in the Mountain Bike industry. Any issues caused as a result of not doing such is not covered by warranty as per GasGas.
Full Send!
The MXC 5 is a playful all-mountain, all-rounder. A package of brazen fun, it's built for thrills and high-energy trail seekers. With a 160/140mm suspension platform, it's massively capable in any surrounding and is a bike that is not defined by any one genre. Bike park laps, rowdy natural trails, jump lines, free riding in the mountains...it does it all in true GASGAS style.
Capable Chassis
The carbon frame, with mullet wheel set-up and size-specific rear-end are matched with progressive geometry and playful kinematics for a ride that’s super agile and instantly confidence-inspiring.
Powered By SRAM
SRAM's new Eagle Powertrain provides 90Nm of torque, 680W peak power and some dynamic auto-shift and coast-shift functions. The 630Wh battery and optional 250Wh Range Extender balance weight and range.
WP Suspension Partnership with DVO
The MXC 5’s suspension comes courtesy of DVO powered by WP, with ground-breaking cone-valve technology found for the first time in the eMTB space.
Specifications
Frameset
| Frame | 29/27.5", Carbon, Integrated battery, Boost, 140 mm |
| Fork | DVO Onyx D1CV SL, Air, 160 mm, tapered |
| Shock | DVO Topaz AIR CV, Air, 205x60 mm |
Brakes & Drivetrain
| Motor | SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm |
| Battery | SRAM Eagle Powertrain, 630 Wh |
| Charger | SRAM Eagle Powertrain Charger, 4 A |
| Display | SRAM Eagle Powertrain AXS Bridge Display |
| Front Brake | SRAM G2 RS, 4-piston, Hydraulic disc brake |
| Front Brake Rotor | SRAM Centerline, 220 mm, 6-hole |
| Rear Brake | SRAM G2 RS, 4-piston, Hydraulic disc brake |
| Rear Brake Rotor | SRAM Centerline, 200 mm, 6-hole |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-S |
| Cassette | SRAM XS-1275, 10-52 T |
| Chain | SRAM GX Eagle Transmission Flattop |
| Chainring | SRAM XX Eagle Transmission |
| Crank Arm | SRAM GX Eagle E-MTB |
| Shift Lever | SRAM AXS Pod Ultimate Controller |
Wheels
| Front Wheel | Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle |
| Rear Wheel | Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle |
| Tire | Maxxis Assegai, 63-622, 29 x 2.5 |
| Rear Tire | Maxxis Minion DHR II, 62-584, 27.5 x 2.4 |
Cockpit
| Stem | GASGAS 35, 0 °, Ahead |
| Headset | Acros AZX-579 ZS56/ZS56 |
| Handlebar | GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm |
| Grips | GASGAS MTB, Lock-on grips |
| Saddle | Selle San Marco GND |
| Seat Post | GASGAS Pro, 34.9 mm, Dropper post |
Accessories
| Pedals | GASGAS, aluminum |
| Chain Guide | Direct Mount |
Additional Information
| Weight | 24.1 kg |
| Permissible Total Weight | 130 kg |
| Trailer approval | No trailer approval |
Due to problems in supply chain, the bike can be delivered with alternate but similar components, for example SRAM vs Shimano controls.
Geometries
| Size | SM/MD | MD/LG | LG/XL |
|---|---|---|---|
| A Top Tube Length | 588mm | 613mm | 638mm |
| B Seat Tube Length | 400mm | 440mm | 470mm |
| C Seat Tube Angle | 74° | 74° | 74° |
| D Head Tube Length | 120mm | 135mm | 150mm |
| E Steering Angle | 64.5° | 64.5° | 64.5° |
| F Chain Stay Length | 442mm | 445mm | 450mm |
| G Wheel Base | 1228mm | 1262mm | 1299mm |
| I BB-Drop | 31.5mm | 31.5mm | 31.5mm |
| L Stack | 644mm | 658mm | 671mm |
| M Reach | 445mm | 470mm | 495mm |
| N Stem Length | 40mm | 40mm | 40mm |
| O Crank Length | 165mm | 165mm | 165mm |
