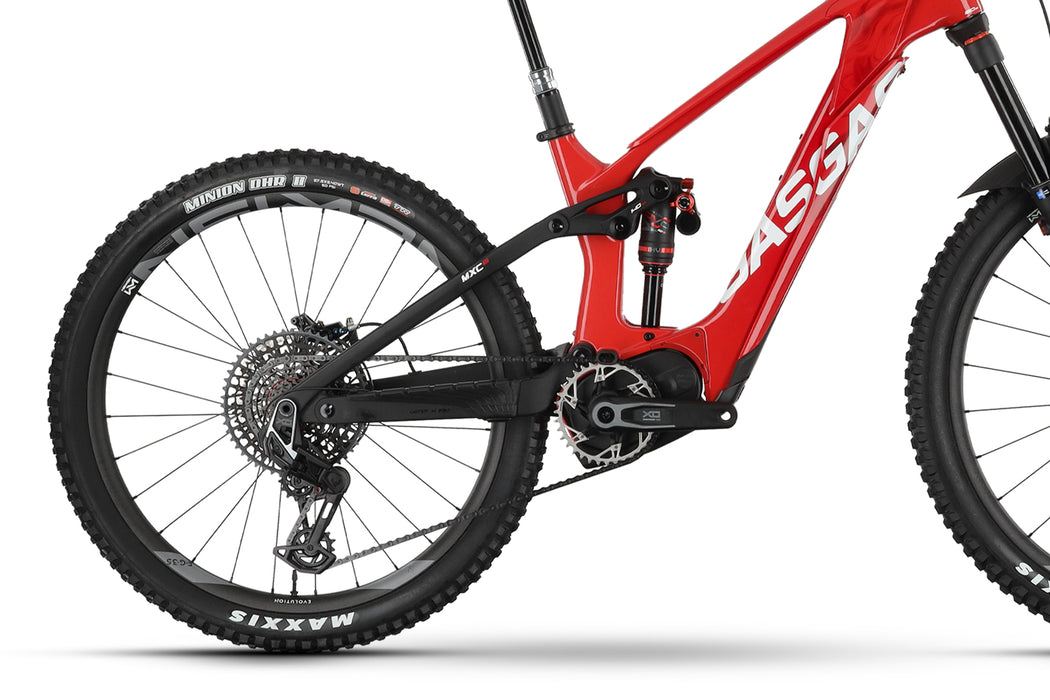

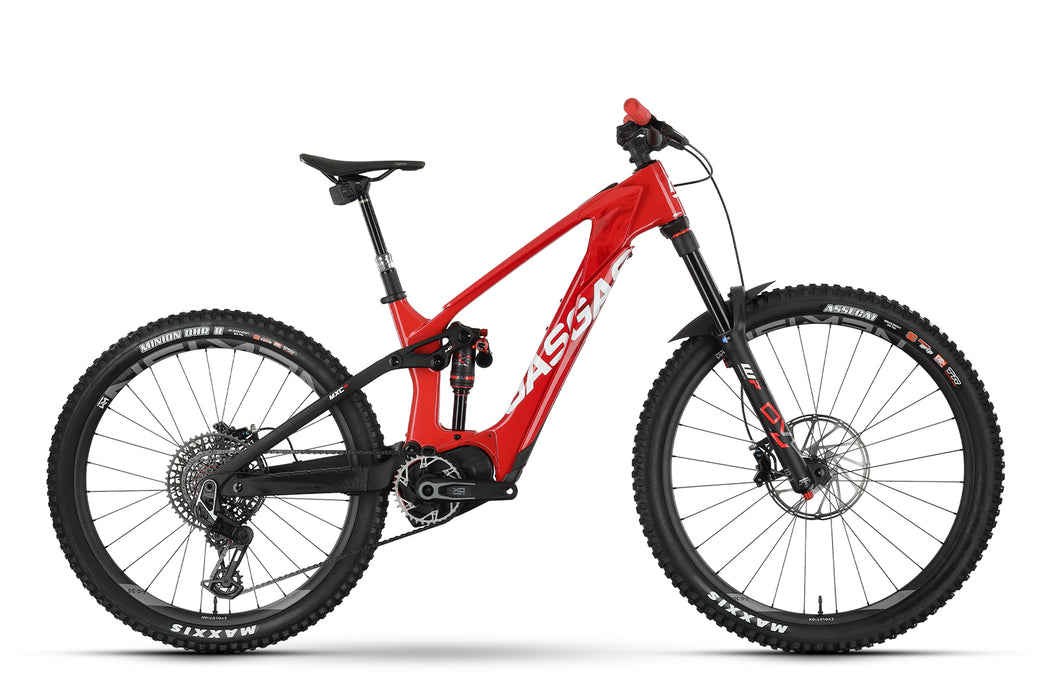

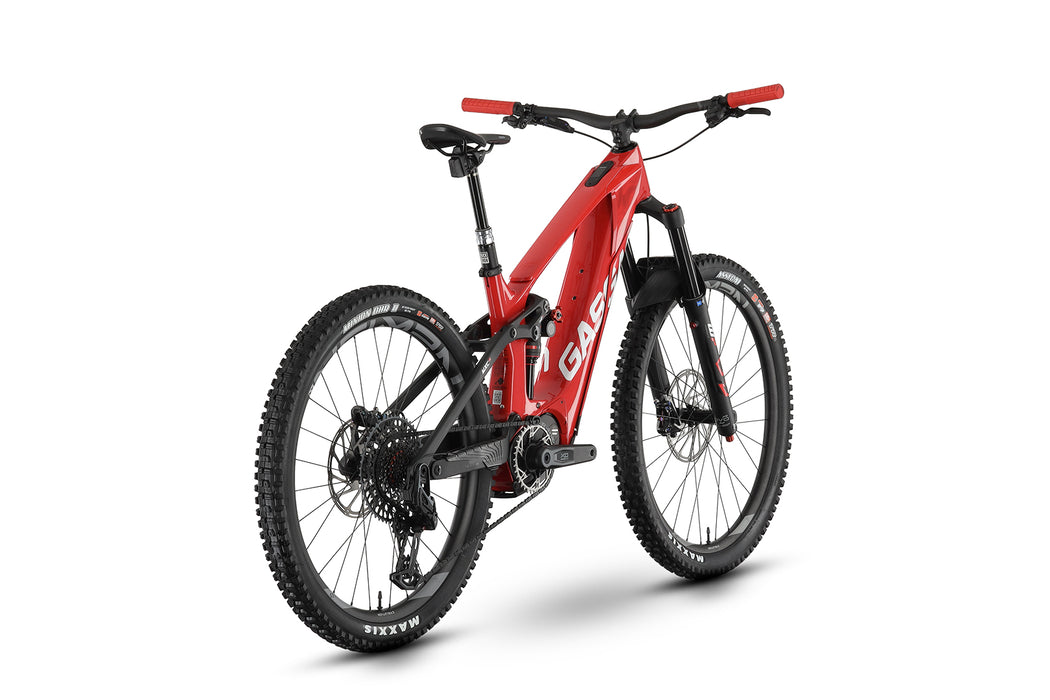

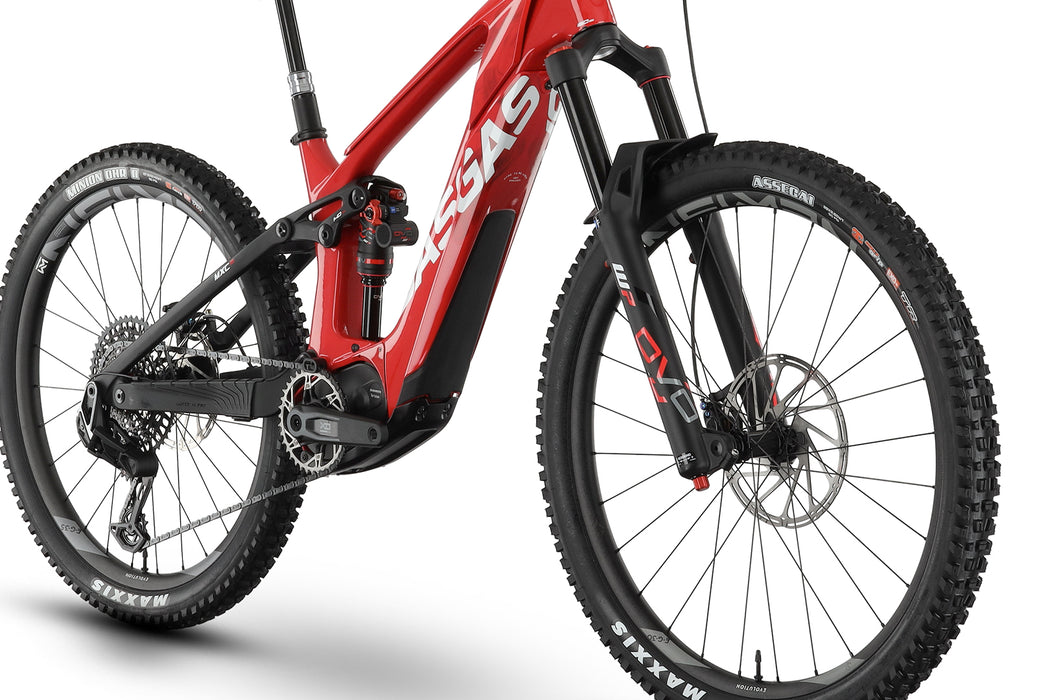

GasGas MXC 6 E-Bike
DESCRIPTION
This product will be sent by freight due to its size and nature and will be held for pick up at your nearest depot.
Certain restrictions, considerations and charges may apply depending on your shipping location.
It's recommended and encouraged to have this bike assembled at a qualified dealer. Adjustments to handlebars, controls, brakes (may need to be bled), battery clamps and seating, tire pressure, headset freeplay, and derailleur may be required prior to use.
It is also recommended to tighten bolts before every ride, and to check the chain tension and make adjustments as needed after the bike has been broken in as is standard in the Mountain Bike industry. Any issues caused as a result of not doing such is not covered by warranty as per GasGas.
Shred Red!
The MXC 6 is a super-fun bike that opens up a new level of creative and playful riding. The flagship model of our MXC range, the 6 will have you instantly aiming high and pushing your limits in the quest for epic fun. With its agile geometry and progressive suspension kinematics, you can let your rebellious side take control as you rip through rock gardens, hit jumps, and tackle technical climbs with high-energy vibes.
Frame Platform
The MXC 6 chassis is a 140mm-travel, carbon frame that features size-specific rear-end for optimal riding dynamics. Progressive geometry, mixed wheels, and durable covers offer innovative protection.
SRAM Eagle Powertrain
The new SRAM Eagle Powertrain leads the way with 90Nm of torque, 680W peak power, auto-shift and coast-shift functions. The 630Wh battery and the optional 250Wh Range Extender balance weight and range.
DVO Powered by WP
The complete chassis features DVO powered by WP suspension with innovative cone valve technology and 160mm travel via a beefy 38mm front fork and a 140mm rear air shock.
Specifications
Frameset
| Frame | 29/27.5", Carbon, Integrated battery, Boost, 140 mm |
| Fork | DVO Onyx D1CV OTT, Air, 160 mm, tapered |
| Shock | DVO Topaz AIR CV, Air, 205x60 mm |
Brakes & Drivetrain
| Motor | SRAM Eagle Powertrain Drive Unit, 250 W, 90 Nm |
| Battery | SRAM Eagle Powertrain, 630 Wh |
| Charger | SRAM Eagle Powertrain Charger, 4 A |
| Display | SRAM Eagle Powertrain AXS Bridge Display |
| Front Brake | SRAM Code RSC, 4-piston, Hydraulic disc brake |
| Front Brake Rotor | SRAM Centerline, 220 mm, 6-hole |
| Rear Brake | SRAM Code RSC, 4-piston, Hydraulic disc brake |
| Rear Brake Rotor | SRAM Centerline, 200 mm, 6-hole |
| Rear Derailleur | SRAM X0 Eagle Transmission, 12-S |
| Cassette | SRAM XS-1295, 10-52 T |
| Chain | SRAM X0 Eagle Transmission Flattop |
| Chainring | SRAM XX Eagle Transmission, 36 T |
| Crank Arm | SRAM X0 Eagle E-MTB |
| Shift Lever | SRAM AXS Pod Ultimate Controller |
Wheels
| Front Wheel | Rim: NEWMEN Evolution SL E.G. 30, Tubeless ready / Hub: 6-hole, 15x110 mm, thru axle |
| Rear Wheel | Rim: NEWMEN Evolution SL E.G. 35, Tubeless ready / Hub: 6-hole, 12x148 mm, thru axle |
| Tire | Maxxis Assegai, 63-622, 29 x 2.5 |
| Rear Tire | Maxxis Minion DHR II, 62-584, 27.5 x 2.4 |
Cockpit
| Stem | NEWMEN Evolution 318.4, Ahead |
| Headset | Acros AZX-579 ZS56/ZS56 |
| Handlebar | NEWMEN Advanced 318.25, 800 mm, Rise: 25 mm |
| Grips | GASGAS MTB, Lock-on grips |
| Saddle | Selle Royal Terra Ridon X5 |
| Seat Post | RockShox Reverb AXS |
Accessories
| Pedals | GASGAS, aluminum |
| Chain Guide | Direct Mount |
Additional Information
| Weight | 23.8 kg |
| Permissible Total Weight | 130 kg |
| Trailer approval | No trailer approval |
Due to problems in supply chain, the bike can be delivered with alternate but similar components, for example SRAM vs Shimano controls.
Geometries
| Size | SM/MD | MD/LG | LG/XL |
|---|---|---|---|
| A Top Tube Length | 588mm | 613mm | 638mm |
| B Seat Tube Length | 400mm | 440mm | 470mm |
| C Seat Tube Angle | 74° | 74° | 74° |
| D Head Tube Length | 120mm | 135mm | 150mm |
| E Steering Angle | 64.5° | 64.5° | 64.5° |
| F Chain Stay Length | 442mm | 445mm | 450mm |
| G Wheel Base | 1228mm | 1262mm | 1299mm |
| I BB-Drop | 31.5mm | 31.5mm | 31.5mm |
| L Stack | 644mm | 658mm | 671mm |
| M Reach | 445mm | 470mm | 495mm |
| N Stem Length | 40mm | 40mm | 40mm |
| O Crank Length | 165mm | 165mm | 165mm |
